What are Gravel Grids?
Key Takeaways:
- Gravel grids are plastic grids or mats used to reinforce and stabilize gravel surfaces.
- They are made in various sizes and thicknesses and are often made from recycled plastic.
- To install, prepare the area, lay a non-woven geotextile membrane, place the grids starting at one corner and interlocking as you go, fill with gravel, compact the gravel, and smooth the surface.
- To cut, mark the line to be cut, secure the grid in place, carefully cut along the line using a circular saw or fine-toothed saw, and follow safety guidelines.

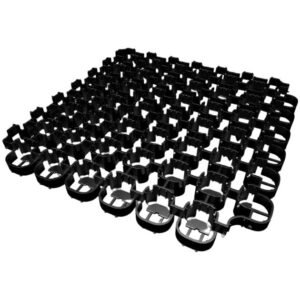

Gravel grids are essentially square plastic grids or mats that are typically used to reinforce gravel surfaces and prevent gravel from spreading out over time. They're often made from recycled plastic, which makes them a more eco-friendly option and reduces production costs. These grids are designed for use on gravel driveways, parking lots, and pathways to keep the gravel in place and create a more stable surface that prevents shifting or sinking.
Gravel grids come in several sizes, with the most common being 450mm x 450mm, 480mm x 480mm, or 500mm x 500mm. They also vary in thickness, ranging from 20mm to 50mm. Thicker grids generally tend to be stronger and can support more weight. However, it's important to always check the load ratings to ensure they meet the requirements for the intended use, as some lighter grids may not be suitable for heavy vehicles.
Since gravel grids are usually made from recycled plastic, they are an environmentally friendly product. They can also be reused, as they are easy to remove and reinstall in a new location if needed, giving them a long lifespan.
In summary, gravel grids are a cost-effective, easy-to-install, and eco-friendly solution for reinforcing and stabilizing gravel driveways, parking lots, or pathways.
How to Lay Gravel Grids for a DIY Gravel Grid Driveway:
Laying gravel grids is a relatively straightforward process that most people can accomplish with just basic DIY skills. It doesn't require any specialized tools or skills to install. Here’s a basic step-by-step guide on how to install gravel grids:
- Prepare the Area: Start by preparing the area (the driveway or path) by removing the surface soil, including any debris, weeds, and roots. Then level the ground using a rake and a wacker plate/compactor if necessary.
- Install the Geotextile Membrane: A non-woven geotextile membrane should be placed below the gravel grids to prevent the gravel from sinking into the dirt underneath. Use a non-woven membrane since woven membranes don't allow for proper water drainage.
- Place the Gravel Grids: Once the area is leveled, compacted, and the membrane is installed, you can begin laying the gravel grids. Begin at one corner of the area and work outward, interlocking the grids as you go. Gently tap the grids into place using a rubber mallet or similar tool.
- Fill with Gravel: After all the grids are in place, start filling the area with gravel, using a rake to distribute the gravel evenly over the grids, ensuring all gaps and spaces are filled.
- Compact the Gravel: Once the gravel is evenly spread across the grids, compact it down to ensure a stable and even surface. You can use a wacker plate or similar equipment to gently compact the gravel.
- Finish: After the gravel is compacted, you’re done! Use a broom or rake to smooth out the surface and remove any excess gravel.
For larger installations, such as for a large parking lot, a geogrid should be used as the bottom layer with a sub-base laid and compacted on top before following the steps above.
How to Cut Gravel Grids?
To cut gravel grids, you will need a circular saw or a fine-toothed saw. Cutting gravel grids is a simple process that can be done easily with some basic tools and careful attention. By following these steps, you can easily cut the grids to size to fit your specific area.
Here are the steps to follow:
- Measure and mark the line on the gravel grid to be cut using a pencil or marker pen.
- Secure the Grid: To make cutting the grid easier, reduce mistakes, and increase safety, secure the grid into place using a clamp, vice, or another heavy object to hold the grid still while it’s being cut.
- Cut the Grid: Using your saw, carefully cut along the line you previously marked. If you're using a fine-toothed saw, you may need to take extra care to stay on the line while sawing. If you're using a circular saw, make sure to wear protective eyewear, gloves, and use a steady hand to avoid accidents.
- Smooth Down: Once you’re finished sawing, use some sandpaper or a file to smooth down any rough edges. This will help prevent the grid from snagging during installation and protect from sharp edges.
Where to Buy Cheap Gravel Grids?
- One option would be to purchase second-hand, used gravel grids on a marketplace like eBay or Facebook. While the grids may not be in perfect condition, this can be a cost-effective way to buy them if you're looking to save money.
- If it's a very large area, some suppliers may offer a bulk deal for a full pallet load.
- Compare prices from different suppliers. Always remember that there is often a trade-off on quality when looking for the cheapest products, so keep that in mind when purchasing.
- Consider other options. If gravel grids are out of your budget, sometimes a geogrid or similar product can be used instead.

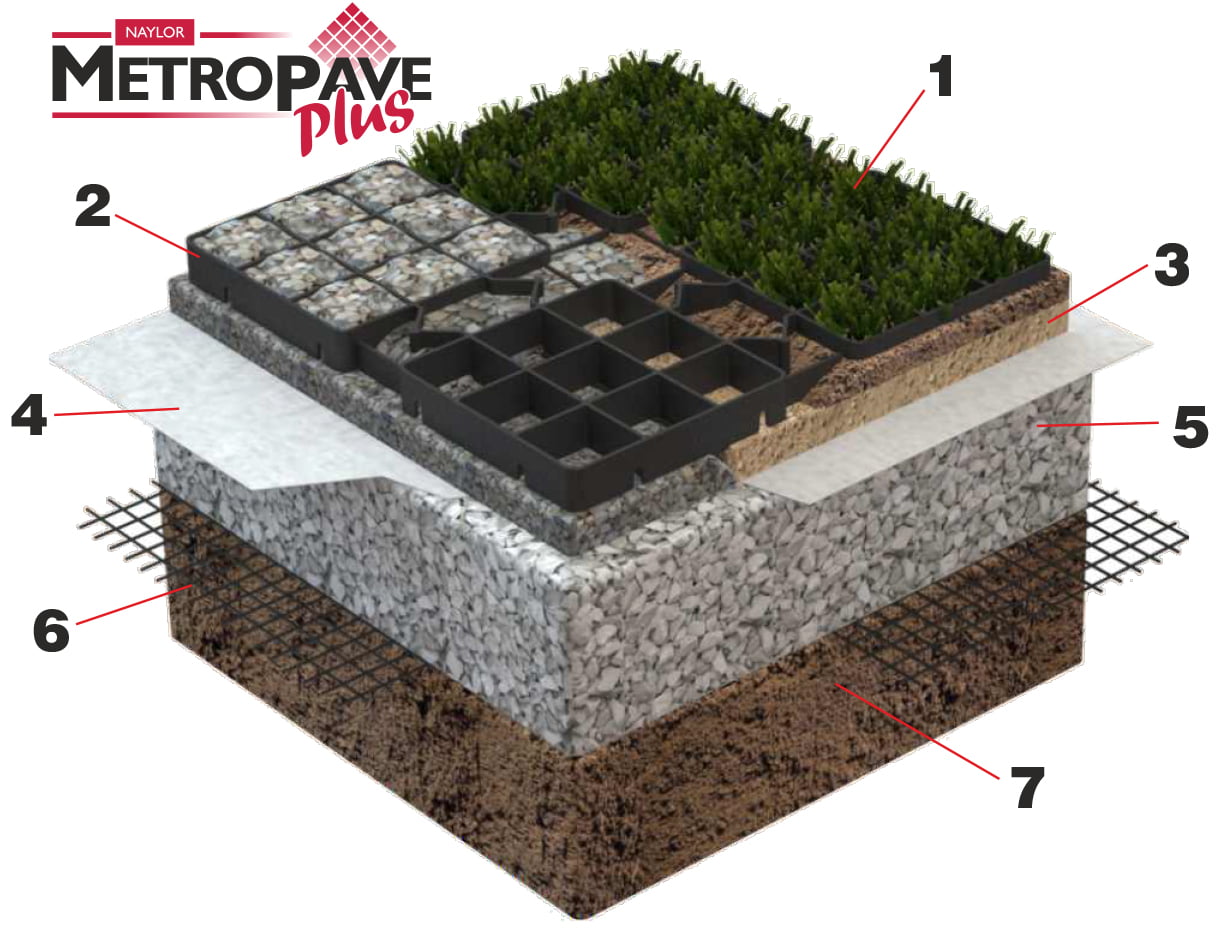

At EasyMerchant, we stock and sell the MetroPave Ground Reinforcement Grids, which are made in the UK and are among the best on the market. We offer two options, the MetroPave Standard and the MetroPave Plus, with the plus version being suitable for heavy traffic areas.
